ShadeCharger(TM)

Solar Powered Cafe and Picnic Tables



Solar power is now available to energize outdoor tables and eating spaces.  The ShadeCharger(TM) module turns a standard picnic table into a solar-powered workstation.   110v AC power and USB outlets deliver solar power to the table surface without need for utility power.  The overhead solar shade structure contains all the electrical functions. Power is available at the table surface using standard outlet connections.

Visit the ShadeCharger.com website.

QR Code for Shade Charger Table

Pay-Per-Use power option is available for public installations. A simple scan of the QR code at the outlet will trigger communication to enable the outlet power. Rental rates are programmable on a table-by-table basis.



Wifi hotspot service option is available at some table locations.  Users can pay-per-use, or subscribe to monthly access at ShadeCharge.net.



User Features

  • Two 110V GFCI outlets
  • Six USB outlets
  • Bluetooth Controlled Speakers
  • Overhead LED table light
  • Shade rotates on round pole to optimize solar power
  • Backup battery for nominal 2 days of operation
  • WiFi hotspot optional using ShadeCharger.net(TM)

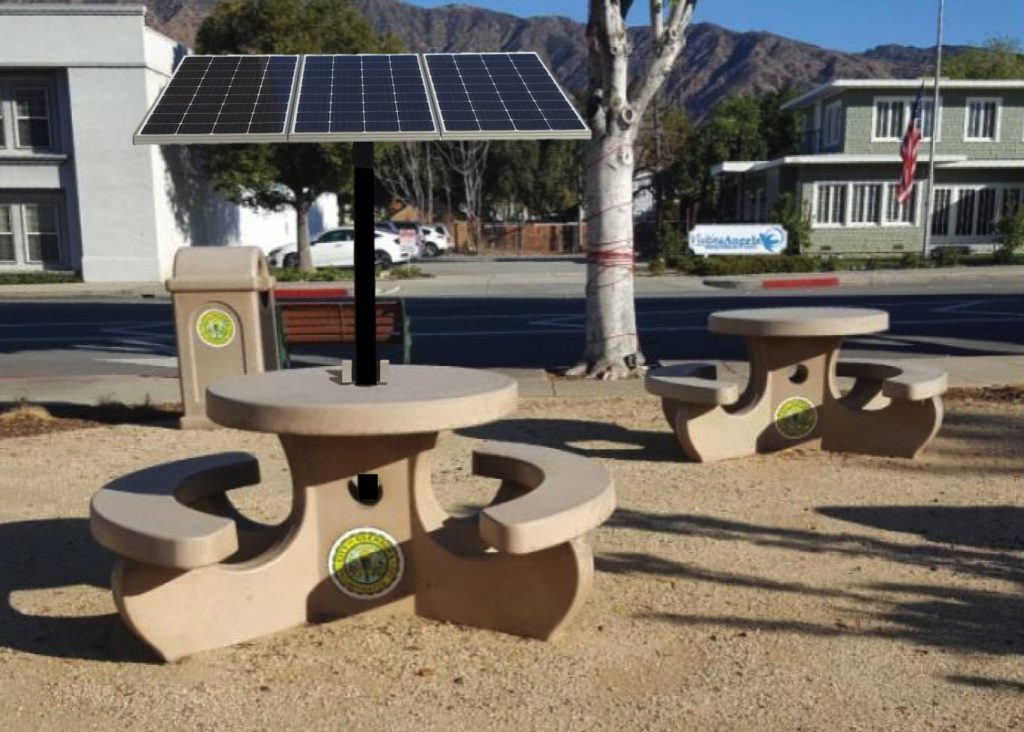

Solar Cafe Table

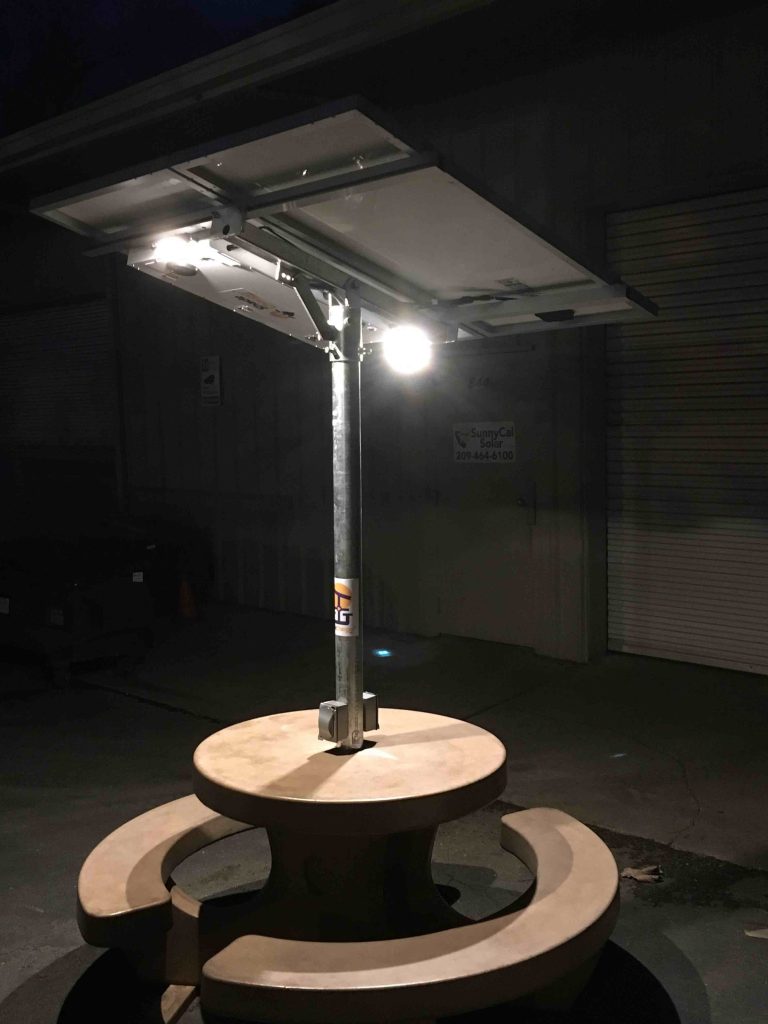

Solar Powered Lighted Cafe Table

The ShadeCharger is available as a complete table or as an add-in to an existing heavy duty table weighing at least 1100lbs.

The ShadeCharger Module contains a long-lasting  1440Whr  lithium battery, charged by a 600W solar array. Each table can support a nominal load of 600W of load power. Battery power availability is limited by available sunlight and load duration.

Yosemite Datasheet

Cafe 1 Datasheet



Weighted Shade PedestalTo increase wind tolerance, the shade support rests in a weighted shade pedestal  below the Yosemite  table.





Concrete tables come in the standard Sequoia Sand color.  Special order  is available in the following colors.



Concrete Table Color Options



Poly-Coated steel tables are available “ShadeCharger” ready.  The standard 8ft. rectangular picnic table can be configured with the larger 3 solar module overhead shade, while the smooth-top 4ft. round table can use the 2 solar module shade. Color selection is shown in the palette below.
