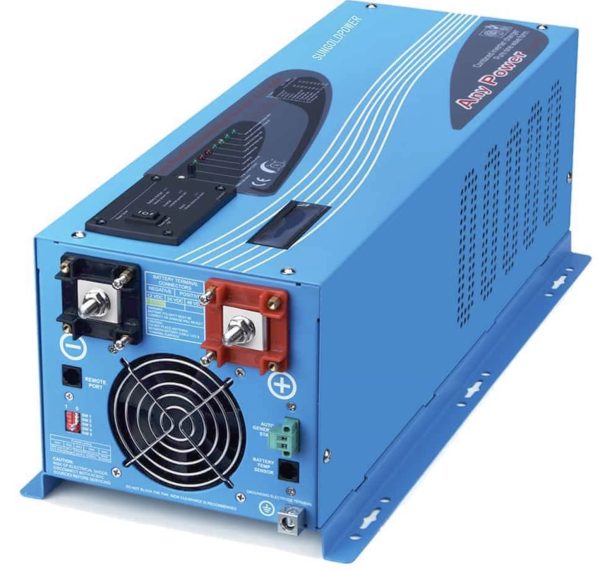

Sungold 4kW Off-Grid Inverter, 24V Batt, 120Vac in, 120/240Vac Out


Color: Blue


SKU: 302-0015-27-1-1-1-1-2-2 Categories: , , , Tags: , , , , , , , ,

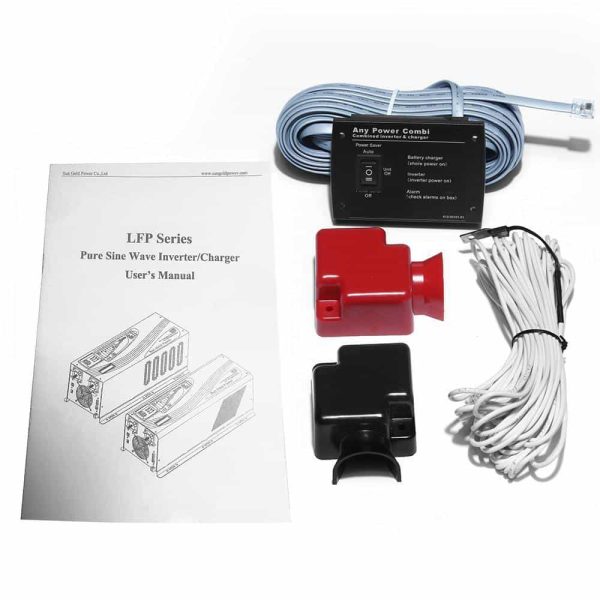

4kW inverter for off-grid applications.  24V battery input, 120Vac input, 120/240Vac output at 60 HZ. Unit includes inverter, battery charger, generator control and remote monitor control panel.  Can support surge to 8kW for inductive loads.   This inverter can charge from 120Vac generator.

  • ★ This LFP Series Pure Sine Wave Inverter is a combination of an inverter, battery charger and AC auto-transfer switch. low frequency, low Idle Current, BTS cable, remote control.
  • ★ This inverter requires 120VAC input and can provide 120/240VAC output power for the appliances, and it can output 50 or 60Hz via the SW4.
  • ★ AC/Battery Priority: Our inverter is designed with AC priority by default, you can choose the battery priority by SW5 switch.
  • ★ Adjustable Charging Current: The max charge current can be adjusted from 0%-100% via a liner switch.
  • ★ Auto Gen Start: The inverter can start up a generator when battery voltage goes low. and turn the generator off after battery charging is finished.

Built in adjustable battery charger, up to 50A , when in Pass-through mode (AC input connected to AC output).

Has priority selector for AC input or Battery Power .  Includes Generator start port for 2-wire generator start.

Unit can accept neutral to earth ground connection at output.

Shipping weight 60lbs



Additional information

Weight 60 lbs
Dimensions 30 × 15.25 × 21.25 in
