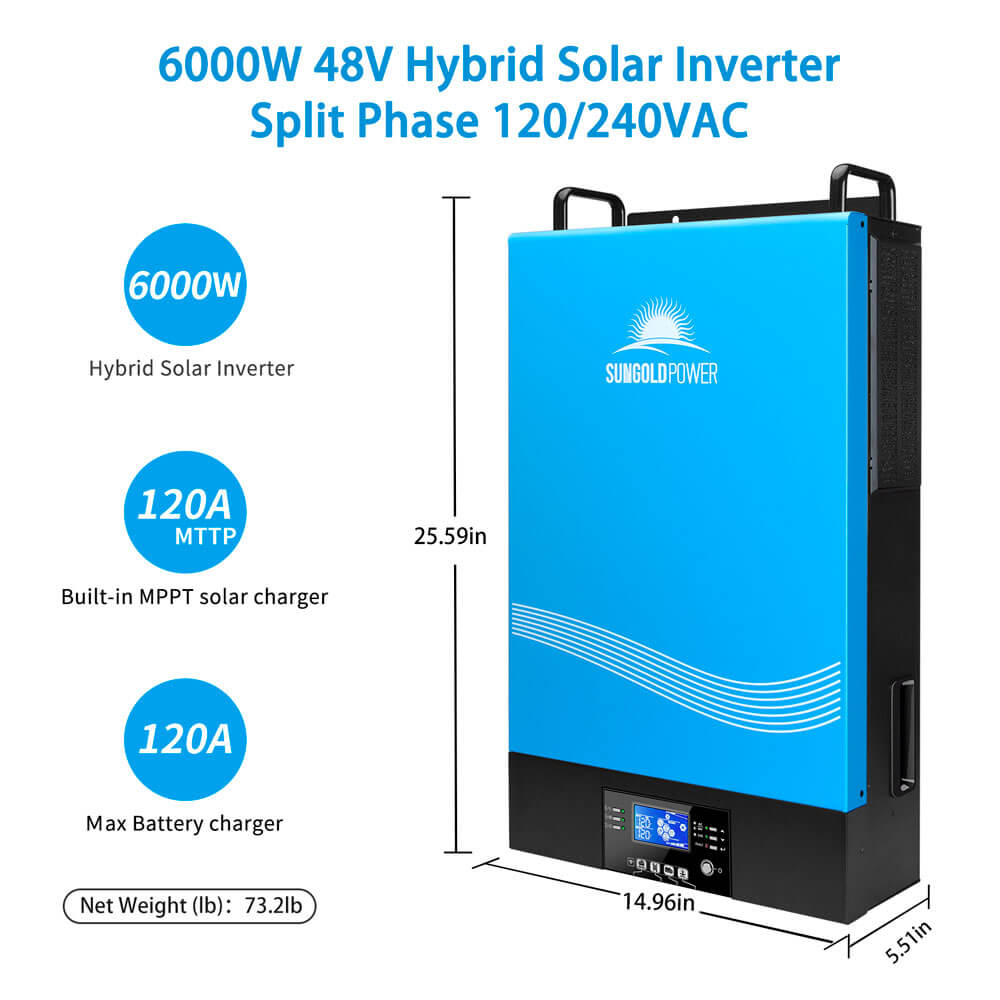

Sungold TP6048 On-Grid All-In-One Inverter, 120/240VAC, 48VDC, battery optional


Color: Blue



  • ★ Solar Inverter: 6KW DC 48V pure sine wave AC output 120/240V, Built-in MPPT solar charger max 120A and utility battery charger max 120A, High Voltage PV input 450V (Voc).  Grid Feedback optional setting is included.
  • ★ Ideal for off-grid cabins and tiny homes where only 120/240vac is needed
  • ★ Parallel Kit: parallel support up to 6 units
  • ★ WIFI Model : Built-in WIFI transmitter,Enable inverter data to be transmitted via WIFI to user’s iphone or android smartphone, app can be downloaded from apple or android store
  • Batteryless support: the inverter can power the loads from PV array / ac grid without battery connected

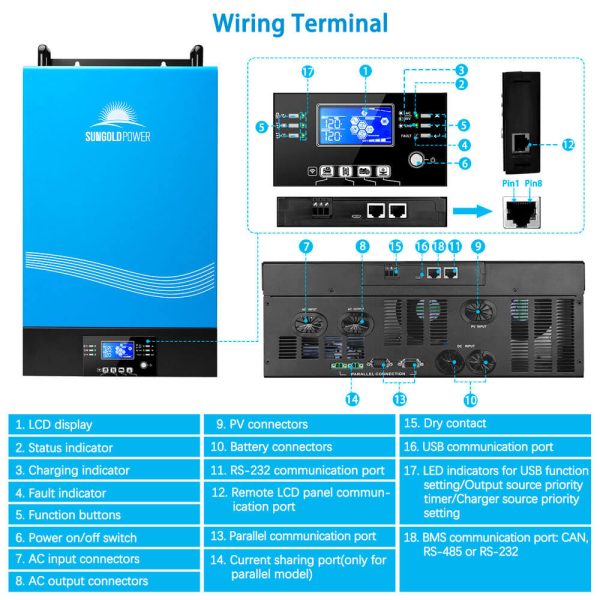

  • LCD operation: Detachable LCD control module with multiple communication ports for BMS (RS485, CAN-BUS, RS232)
  • ★ Unlimited USA tech support : Online and phone support for system design and troubleshooting
  • ★ 24-Month Limited Manufacturers Warranty

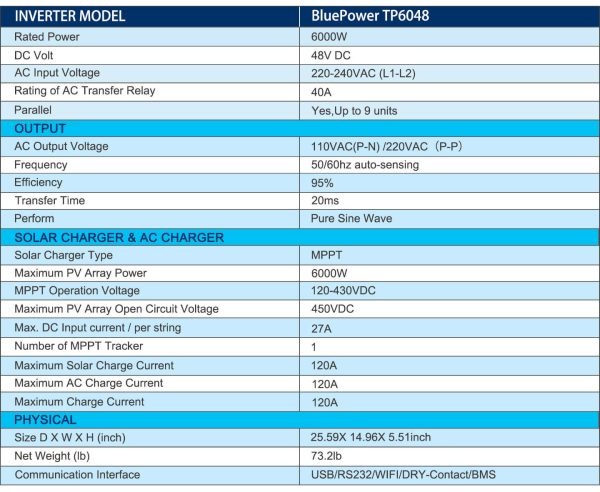

6048 Input/Output Voltage
6048 Input/Output Voltage

TP6048 Manual

24 Mo Warranty Details

Additional information

Weight 75 lbs
Dimensions 30 × 15.25 × 10 in
