Distribution Panel, Dual XW+


Part Number 108-0008-01

SKU: 108-0008-01 Categories: , Tags: , ,


Power Distribution Panel for wiring XW+ inverter system. Includes AC and DC breakers and conduit box.

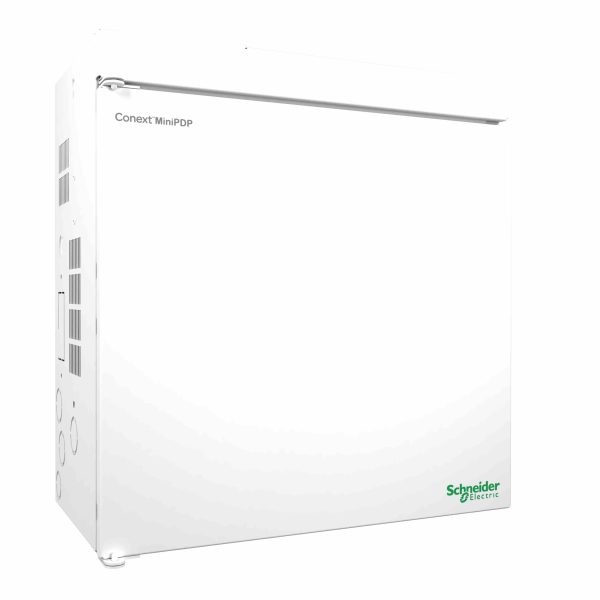

The ConextTM XW+ Power Distribution Panels (XW+ PDP and Mini PDP) are factory-wired and labeled to support the integration of multiple Conext XW+ inverter/chargers and Conext MPPT Solar Charge Controllers with a single battery bank. The XW+ PDP and Mini PDP ships with breakers, bus bars and cables to install a single XW+ inverter/charger. With space to add wiring and breakers, a single XW+ PDP and Mini PDP supports one XW+ inverter/charger, a diesel generator and either a MPPT 80 600 or MPPT 60 150 Solar Charge Controller. The XW+ PDP and Mini PDP supports single-phase, split phase or three-phase installations. A field-reversible door and multiple conduit knockout entry points allow for the XW+ PDP and Mini PDP enclosure to be mounted and configured on either side of the inverter/charger.

Conext XW+ Power Distribution Panels are designed to save significant time and money during installation when compared to custom solutions. A mounting bracket and Conext XW+ Conduit Box are also supplied with each XW+ PDP and Mini PDP.

Additional information

Weight 75 lbs
Dimensions 24 × 24 × 48 in
