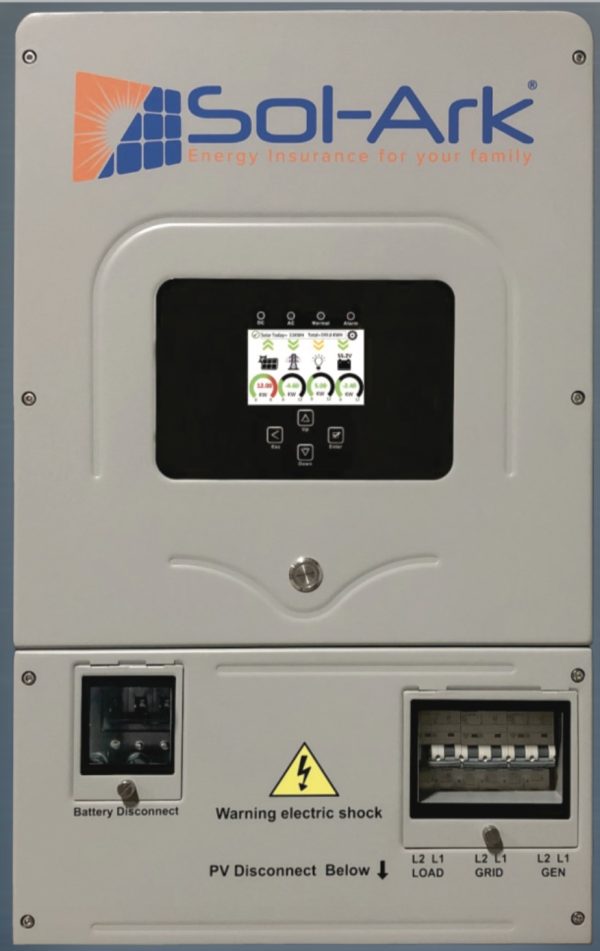

Sol-Ark, 12kW Hybrid Inverter



This Sol-Ark 12kW battery-based hybrid inverter is the world’s most feature rich solar power inverter.  It enables nearly any solar operating mode imaginable;  isolate from the grid, reduce your draw from the grid, or enable you to go entirely off-grid.

        • PV array up to 16.5kW
        • Pass through power from grid or generator up to 12kW
        • Grid feedback up to 9.5kW
        • Off-grid power up to 8kW.

This inverter can function as a simple grid-tied inverter, ready for future battery addition.  Optionally, a battery can be added to enable power during non-solar conditions.

Extraordinarily, even when the utility power fails, the inverter will produce its
full solar power at the dedicated loads output connection. A distribution panel provides wire connections for dedicated load, utility power and battery cable connection points.

Additional information

Weight 88 lbs
Dimensions 40 × 20 × 9 in
