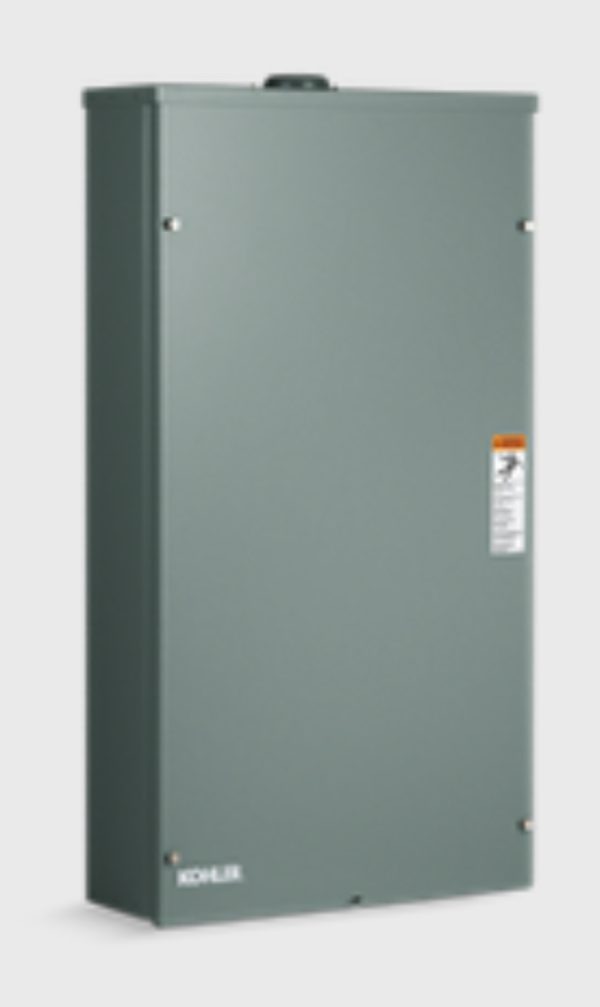

Solar Transfer Switch, 200A DP, with Utility & Inverter Disconnects



Solar-Safe Transfer Switch, by MySite Energy

This Service Entrance rated 200A transfer switch provides capability for fire department to switch off the utility feed and solar inverter output power at one location.  This is one of the few switches that ensure maximum protection to first responders.

The Intelligent Transfer Switch  monitors the single phase electricity coming from the utility, sensing when the power fails or drops below an acceptable level. The built-in the  circuit automatically connects the load circuits to the  solar inverter load.

The solar supply your home is maintained until the utility power is restored.  When the utility power is restored, the transfer switch automatically transfers your power from the battery backup solar to the utility.

200-amp service entrance enclosure includes  branch breaker slots for the utility and load  connect points.  Breaker  on the  inverter output line  is for supplying power to Rapid Shutdown devices. The breaker on  the  utility feed is for use in backfeeding the utility.


  • Dual AC disconnects to disable utility and solar
  • Compatible with all  2-wire generator start/stop controls (for alternate use as generator transfer switch.
  • Ideal for adding battery backup solar to buildings with previously installed electrical.
  • Options available to install indoors or outdoors.
  • Steel or aluminum enclosures available.
  • 200-amp, Volts: 240; Poles: 2
  • Dimensions:  28.9″ x 16.4″ x 6.9″
  • RMS Symmetrical Amps at 240 VAC: 22,000A



Additional information

Weight 50 lbs
Dimensions 30 × 18 × 9 in
