Description

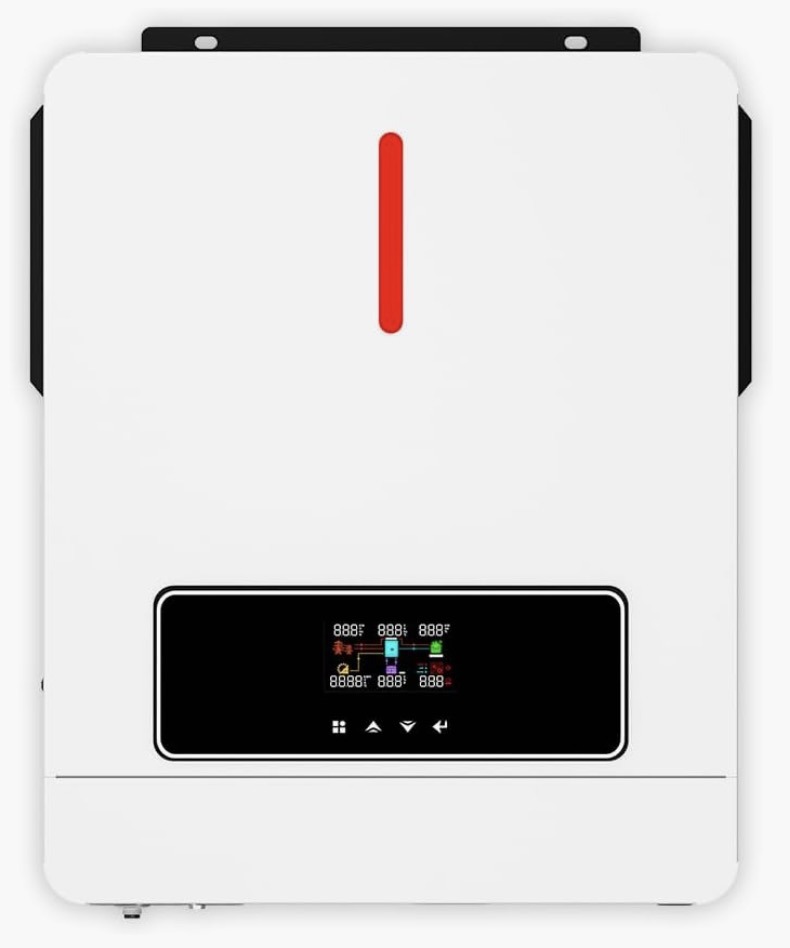

SCS3624-120 all-in-one inverter for a compatible 24V off-grid battery system with 120V AC output.

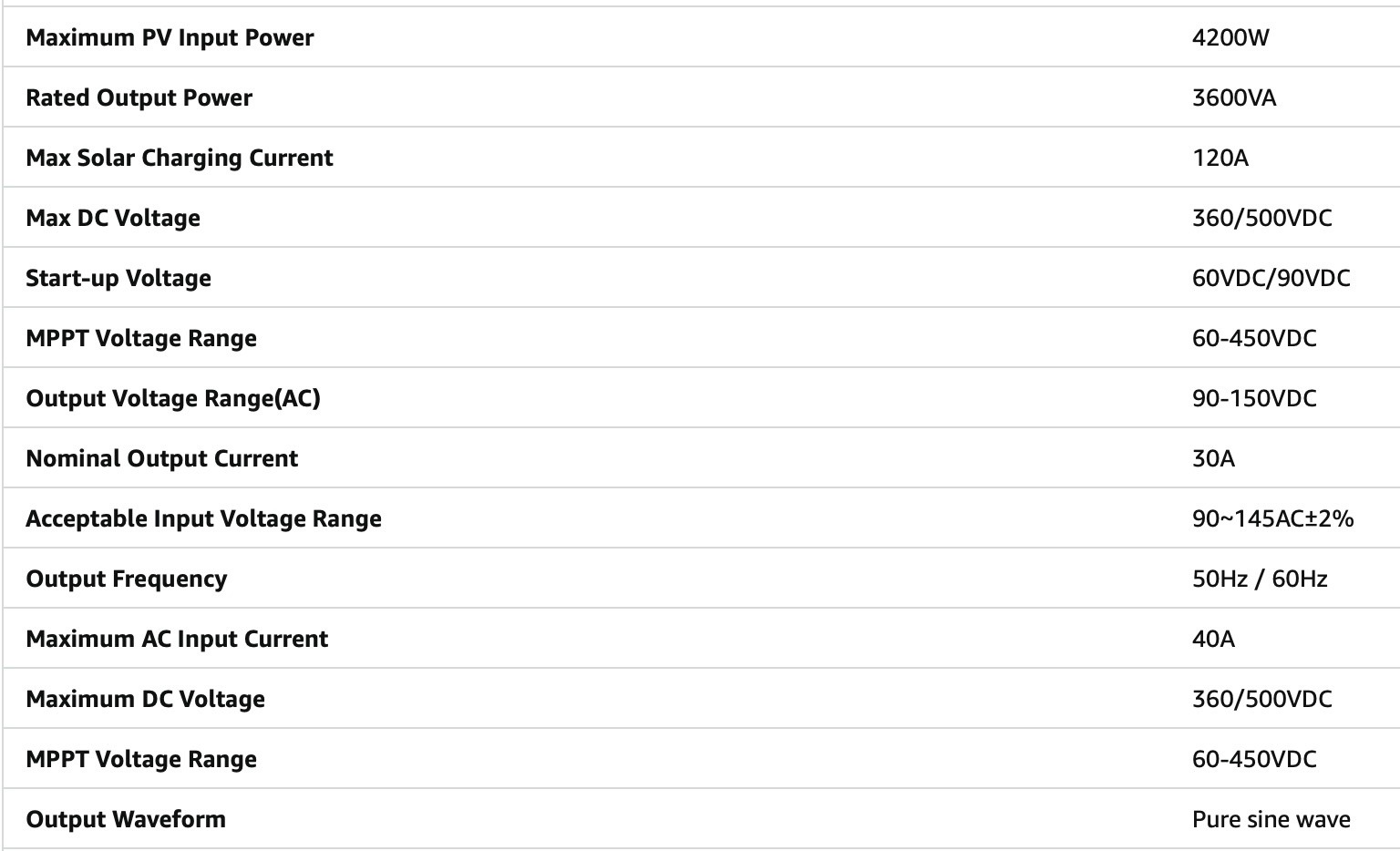

Specifications and included components
- Continuous output: 3600W / 30A at 120V, 60Hz
- Listed peak output: 7200W
- Battery-system voltage: 24V
- Battery charger: 120A from solar or AC input
- PV input: up to 4200W, 90-400V at 18A
- AC bypass: 40A
- Lead-acid, gel, AGM and lithium settings
Product details
The inverter combines AC output and battery charging in one unit. A configuration and monitoring app is available.
Before ordering
Confirm battery chemistry, PV-string limits, load surge requirements and AC connection design.
