Description

Solar for Homeowners and Renters

Side Yard Solar single-module solar frame for use with virtually any size solar panel module.  Unique design can be assembled by hand, with no need for hand tools. Components are slip-inserted  together.

DIY Solar Frame Assembly

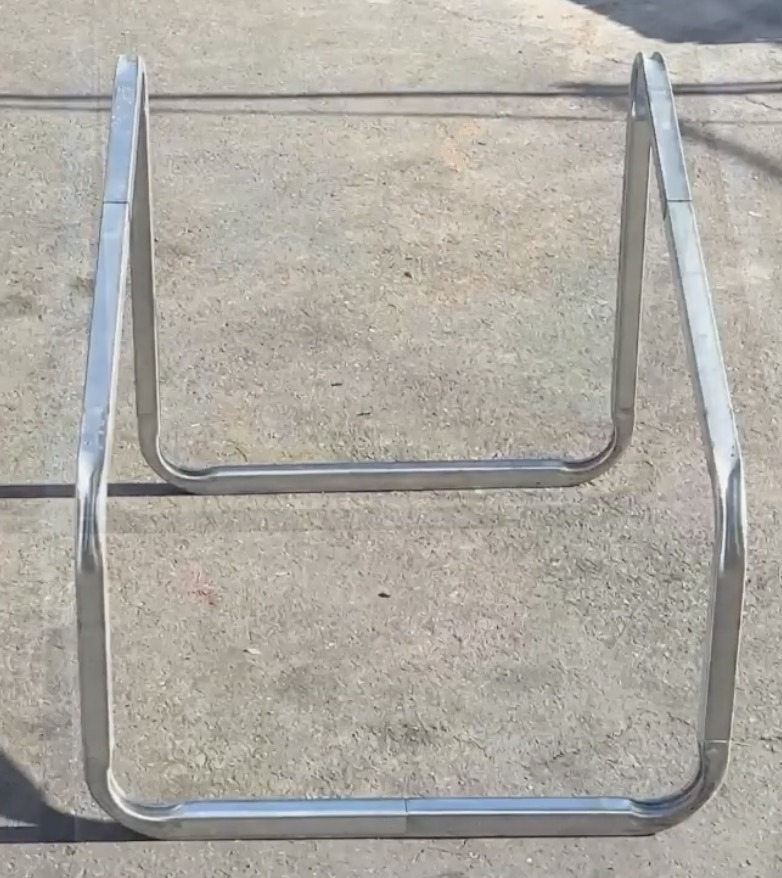

Side Yard Solar Frame Assembly

This galvanized steel structure can accept any solar module, of either 60 or 72 cell format(module not included). Distance between high and low side is 4 feet. Single slope positions solar modules to capture full daytime sunlight.

Multiple frames can be used to create larger arrays.

Each frame requires 8 solar module clamps(optional) to secure modules to frame members.

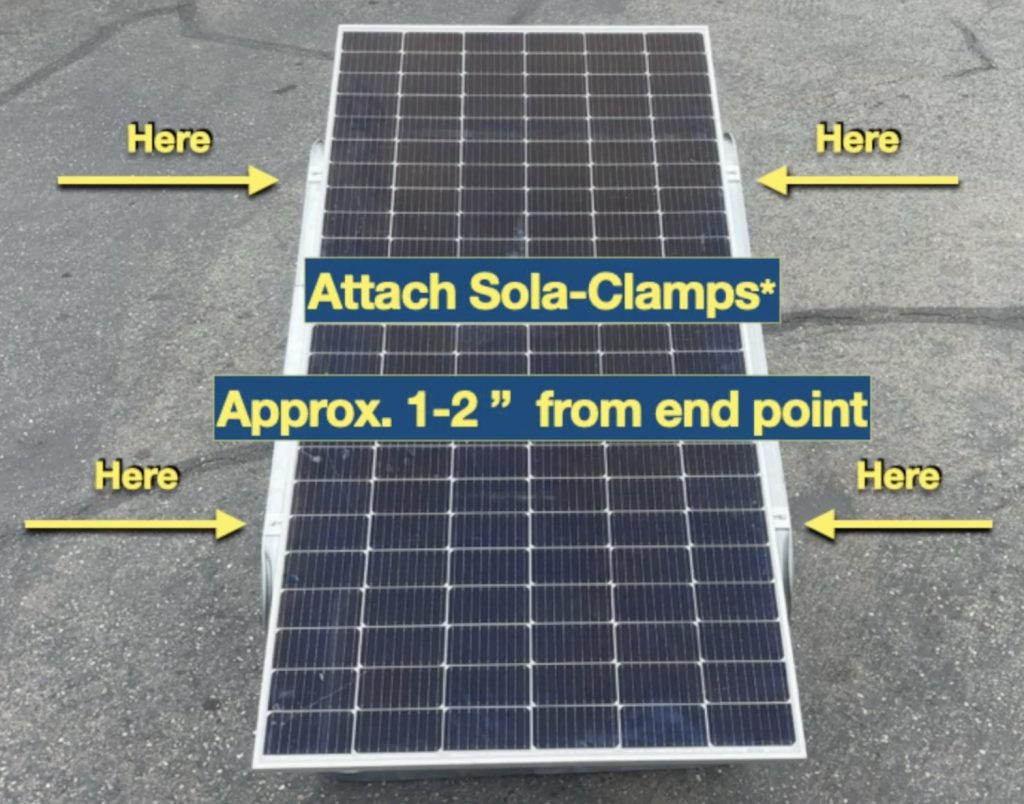

Location for attaching module to frame using Sola Clamps
Location for attaching module to frame using Sola Clamps and self drilling screws

When the solar module is attached, the support frame components  are locked in place, and cannot separate.  Optionally no-screw rivets can be installed to create iron clad strong supports.

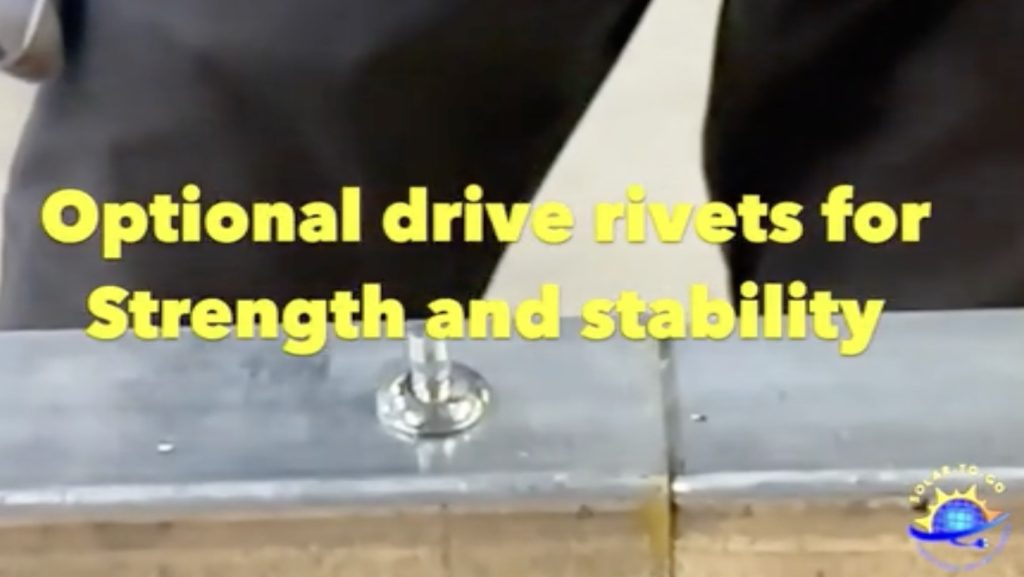

No screw rivets can be used to permanently assemble frame
No screw rivets can be used to permanently assemble frame

For expansion, this Side Yard Solar Rack system can coupled together by adding linking bars to neighboring supports.

Dual panel Solar-to-Go system, 120-240vac Plug-in power shaver
Example Dual panel Frame shown with optional solar modules and inverter
Concealed Solar Clamps
Concealed Solar Clamps

For simple assembly, SunnyCal Sola-Clamps(patent pending) can be used to mount  solar panels directly to the support legs. These optional clamps work with virtually any size solar module.

Clamps attach using self-drilling screws.





Low Profile Solar-To-Go structure can be easily moved by two persons.
Low Profile Solar-To-Go structure can be easily moved by two persons.

Rack can be protected against wind uplift and theft by use of ballast blocks, ground screws or clamps.

Solar-to-go hold down options
Solar-to-go hold down options
  • Rack can be preassembled for will-call (sections can be transported using normal pickup or trailer).   Segments can be shortened for shipping; splices are provided for insertion during assembly.
  • Hold down can by ballast blocks, rebar-nails, concrete attachment or ground screws
  • System can be expanded by adding additional sections, joined together by link tubes

Select in-store pickup at checkout and call if delivery is required.

This is a support structure only, optional module  is shown for illustration only .

Additional information

Weight 65 lbs
Dimensions 48 × 24 × 12 in
